1500W 30A Step up DC Boost Converter Power Module In10-60V Out 12-90V
Rs.3,800.00
Product description.

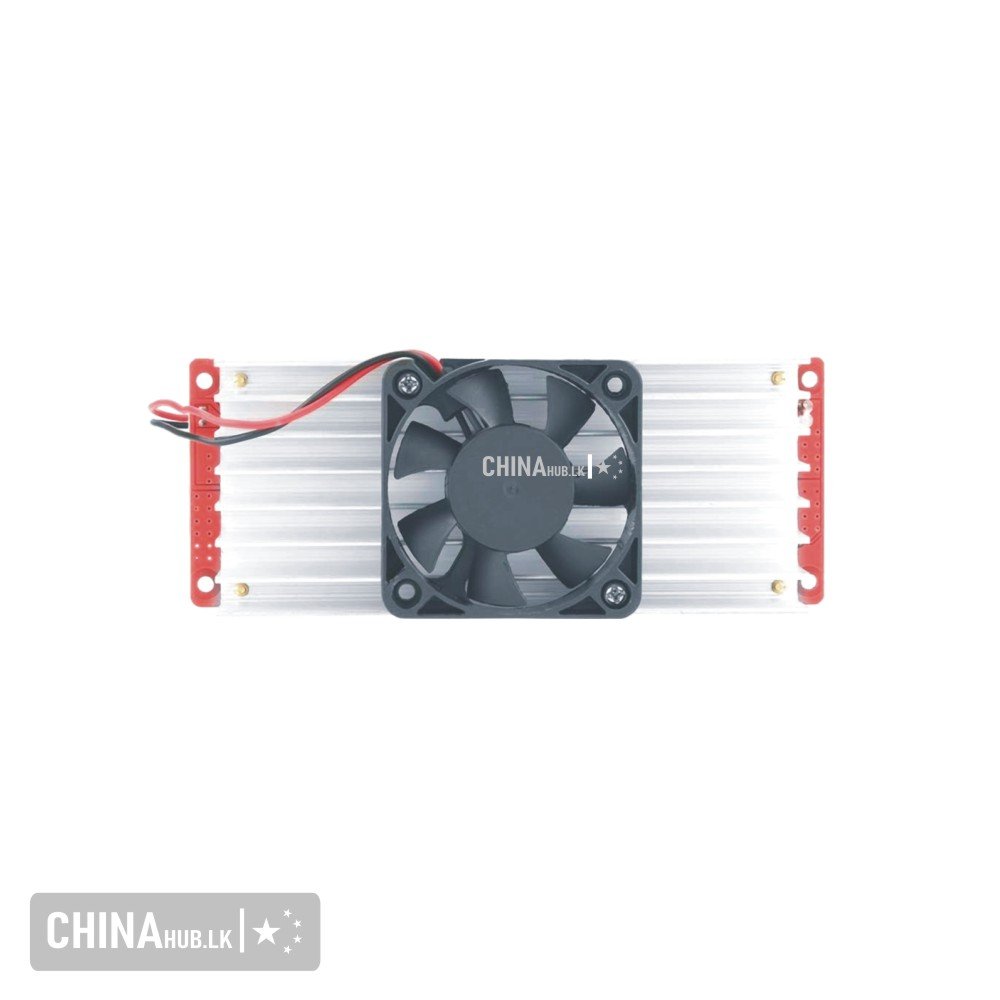

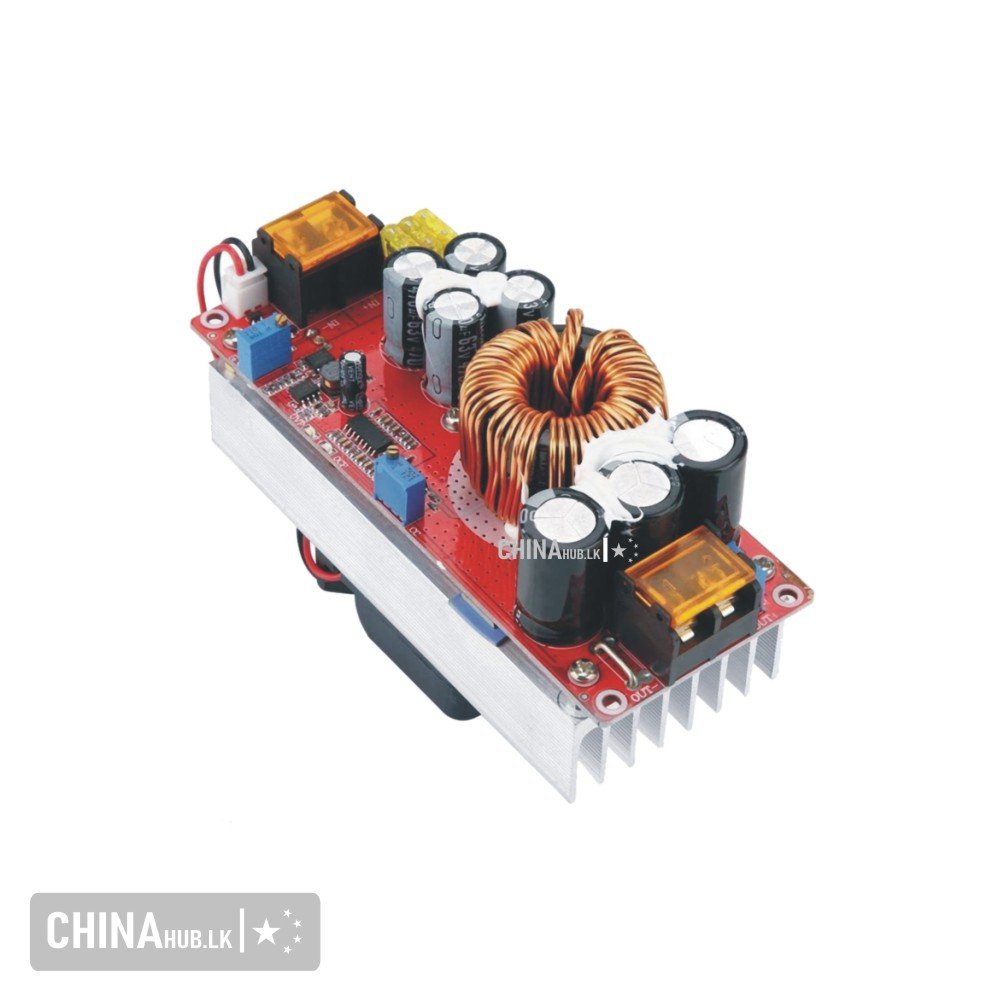

1500W 30A Step up DC Boost Converter Power Module In10-60V Out 12-90V
Specifications: Type: Non-isolated step-up module
Input Voltage: DC10V to 60V
Maximum. Input Current: 30A(input voltage 10V to 30V), 25A(input voltage 31V to 60V)
Quiescent Current: 15mA, Output Voltage: 12V to 90V
Maximum. Output Current: 20A (related to the input and output voltage difference, the greater the voltage difference is, the smaller the output current will be. Please enhance heat dissipation when the current is over 15A)
Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input: Yes (150A MOS)
Lower Voltage : Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: – 40℃ to +85℃(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97%
Input Over-current: Yes )
Short Circuit : Yes(input 30A fuse)
Wiring Method: Terminals
Maximum. Output Power = Input Voltage Maximum Current (If input 12V, the maximum output power=12V*30A = 360W)
